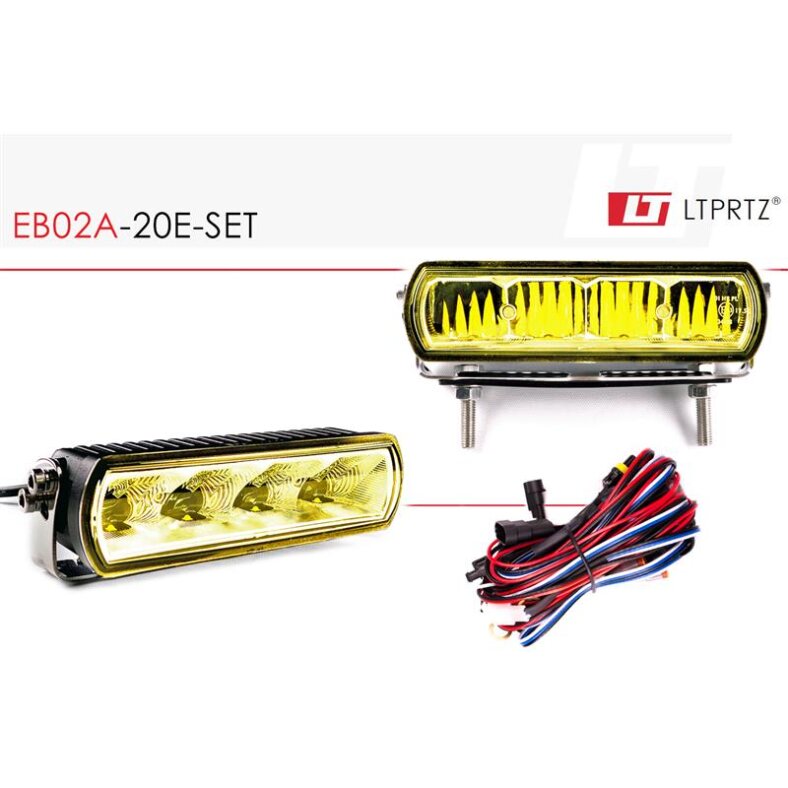

2 pieces ltprtz® 20w Philips led work light
Fog light yellow10-32v
Attention: Sale item - Only while stocks last
radio interference suppressed (emv according to ece 10R)
with pressure compensation valve
Experience offroad better visibility in swirling dust and sand.
(Important: use only off public roads. ece r112 only applies to version with white lens!)
Technical specifications:
-
Power: 2x 20w
-
Lumen: 1400 lm
-
leds: 4pcs each 5w philips chips
-
Working temperature: -40°- + 80° c
-
Operating voltage: 10-32v
-
Light pattern: High beam pattern spot light 20°
-
Lifetime: 30.000 hours
-
Housing: Die-cast aluminum
-
Reflector: chrome colored
-
Lens: Polycarbonate lens
-
Color temperature: 6000-6500 Kelvin
-
Protection class: ip 68
-
Color: black
-
Mounting: lateral; swiveling; aluminum
-
Connection: 2-pin similar to Deutsch plug + h4 plug
-
Dimensions (LxWxH): 161 x 60 x 45 mm
Scope of delivery:
- 2x led eb02a-20e with yellow lens
- 2x 2-pole cable outlet similar to Deutsch plug
- 1x cable set with h4 connector
- 1x cable set with switch, fuse and relay
- 2x mounting screws
- 2x adjustable bracket stainless steel
Fields of application:
- Cars and trucks
- ATVandUTV
- Agricultural and forestry machinery
- Mining industry
- Yachts and boats (here: order white version)
- Off-road
Special features:
- Higher light efficiency due to light emitting from both sides.
- philips led chips provide higher uniformity in color temperature.
- Light beam pattern meets ece and SAE high standards
- ip68
- Pressure equalization valve
- Less than 5% lumen loss within 30,000 hours
- No electromagnetic interference with other electronic devices
- Overvoltage protection
Legal notice regarding the use of worklights:
We bring light into the dark! In order to prevent misunderstandings in connection with worklights / auxiliary lights, the following information is provided here:
The use of worklights is regulated in §52 paragraph 7 stvzo "Additional headlights and lights":
"Multi-track vehicles may be equipped with one or more lights for the illumination of work equipment and work sites (work lights). Work lights may not be used while the vehicle is in motion. On vehicles used for the construction, maintenance or cleaning of roads or facilities in the road area or for refuse collection, work lights may also be switched on while driving, notwithstanding sentence 2, if driving is part of the work process. Work lights may only be switched on if they do not dazzle other road users."
Therefore, note the following:
- Worklights may only be operated off public roads and not within the scope of the StVZO!
- Ensure proper installation and labeling:
- Worklights must not be coupled with actuating devices for limiting/dipped and /or main beam lights
- A separate switch (ideally covered) is always required
- The installation of an associated indicator light is recommended
- Mark in the vehicle in a suitable place near the switch of the worklights: "Use of worklights while driving not permitted!"
