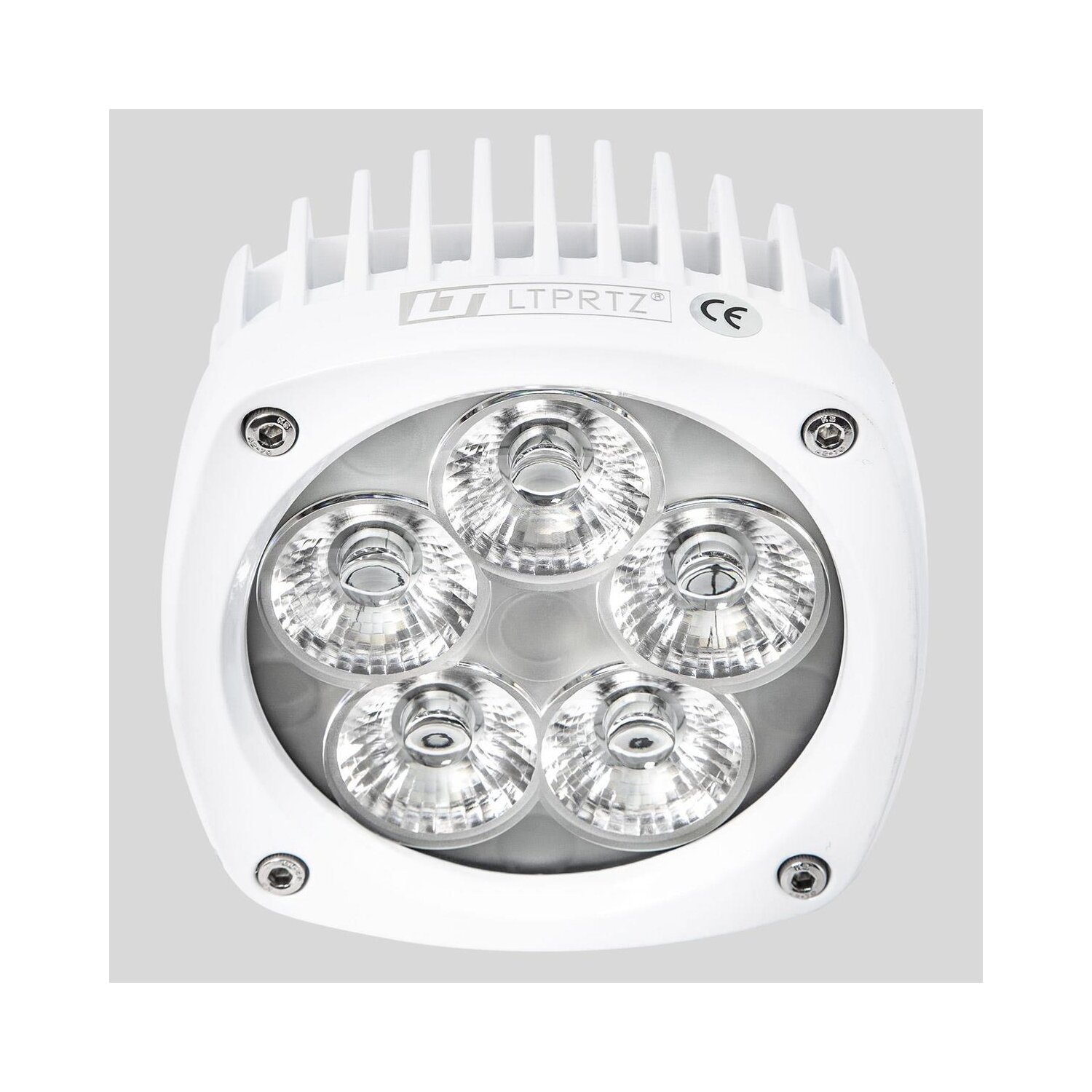

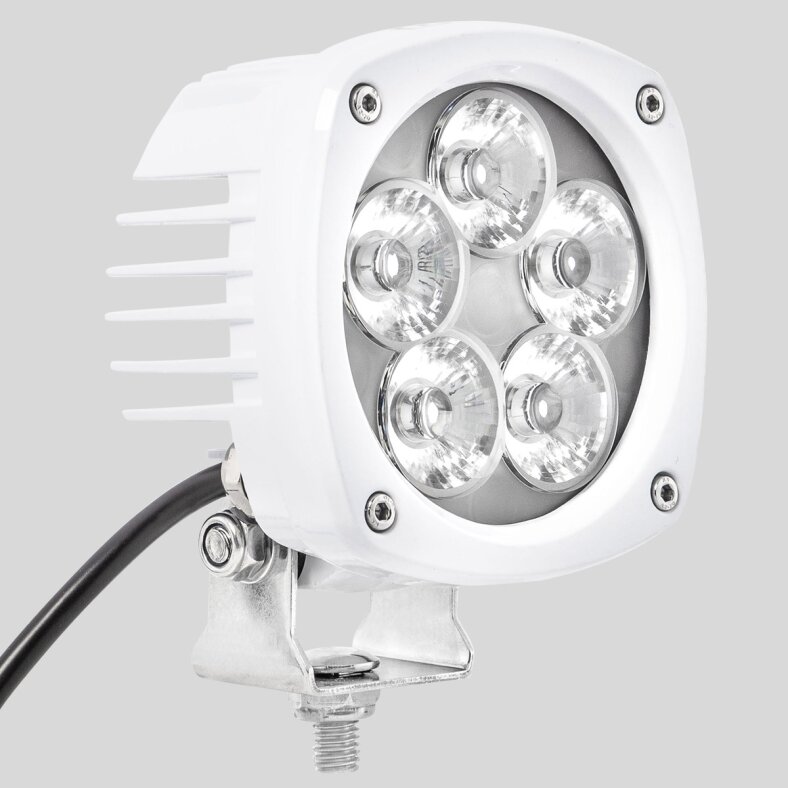

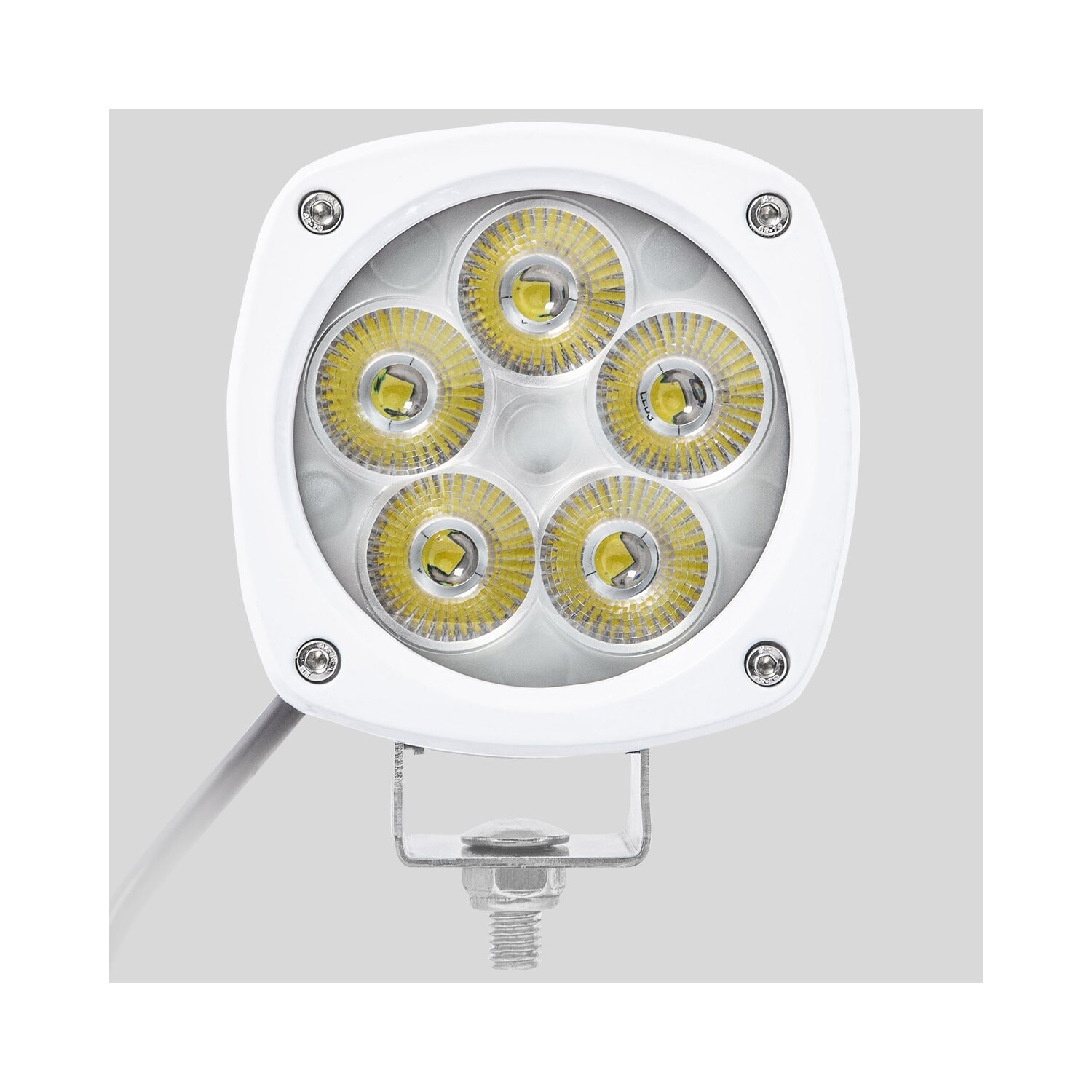

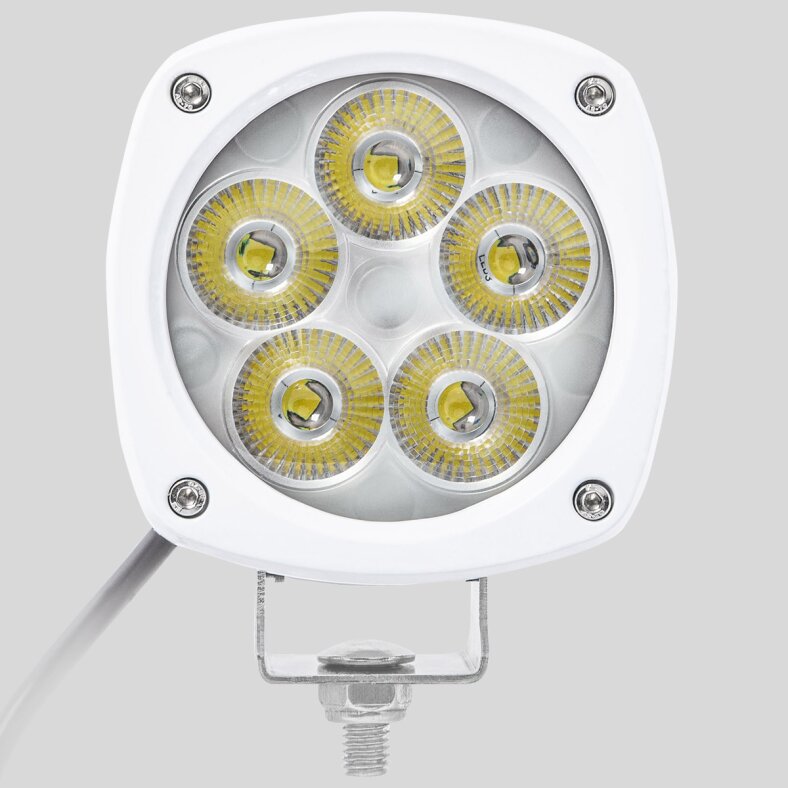

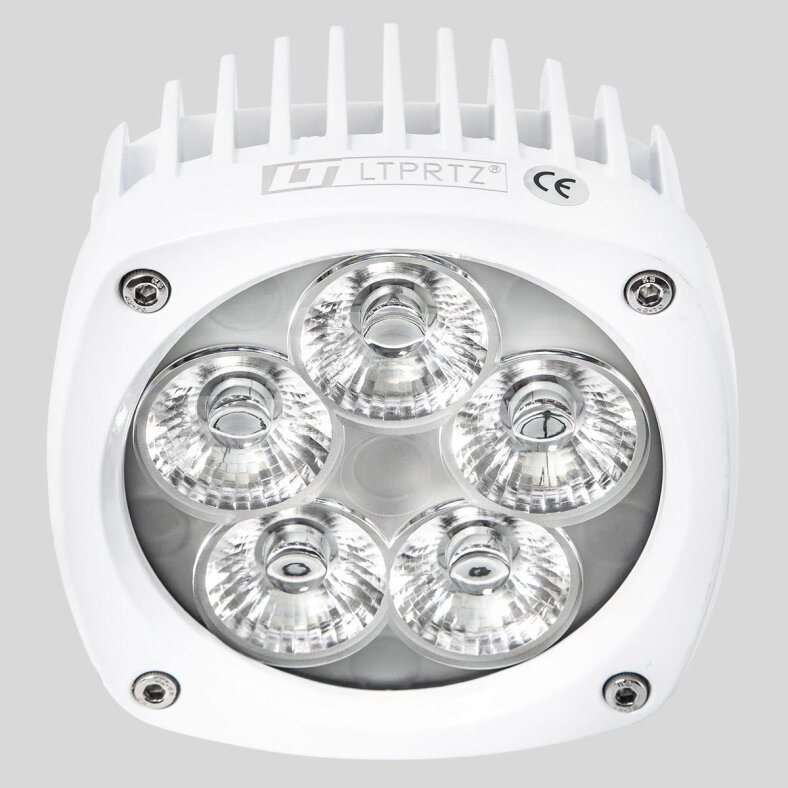

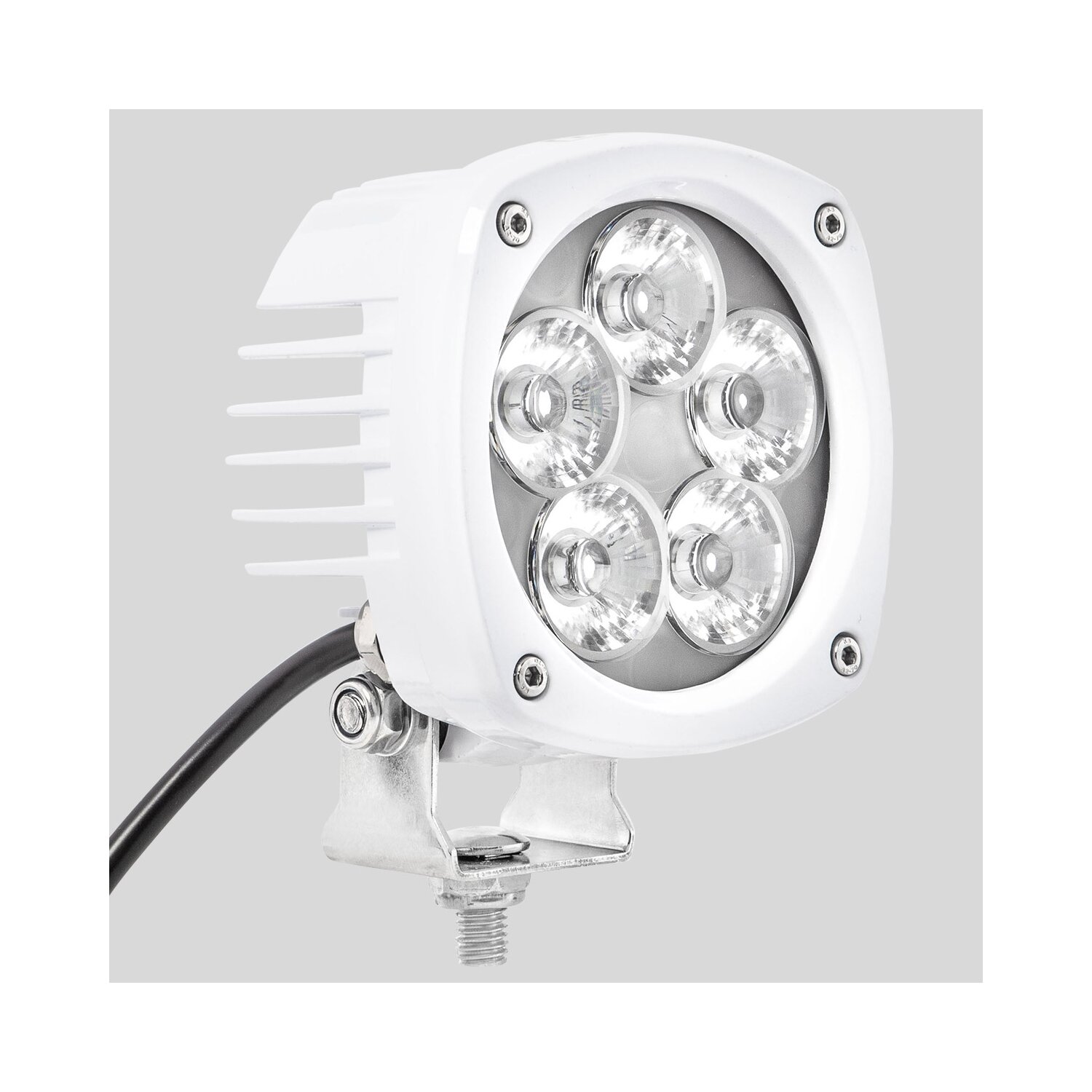

LIGHTPARTZ 50w UltraLux worklight 10° spotlight
The 50w Ultralux worklight is an incredible powerhouse and also one of the most efficient worklights on the market.
The Superdrive circuit provides 130lm/watt effective light output and turn night into day.
Whether off-road or in agriculture, the application possibilities are many thanks to the flexible and sturdy stainless steel bracket.
The compact housing also makes the headlamp look discreet and unobtrusive on the vehicle.
Technical specifications:
Operating voltage: 9-36V

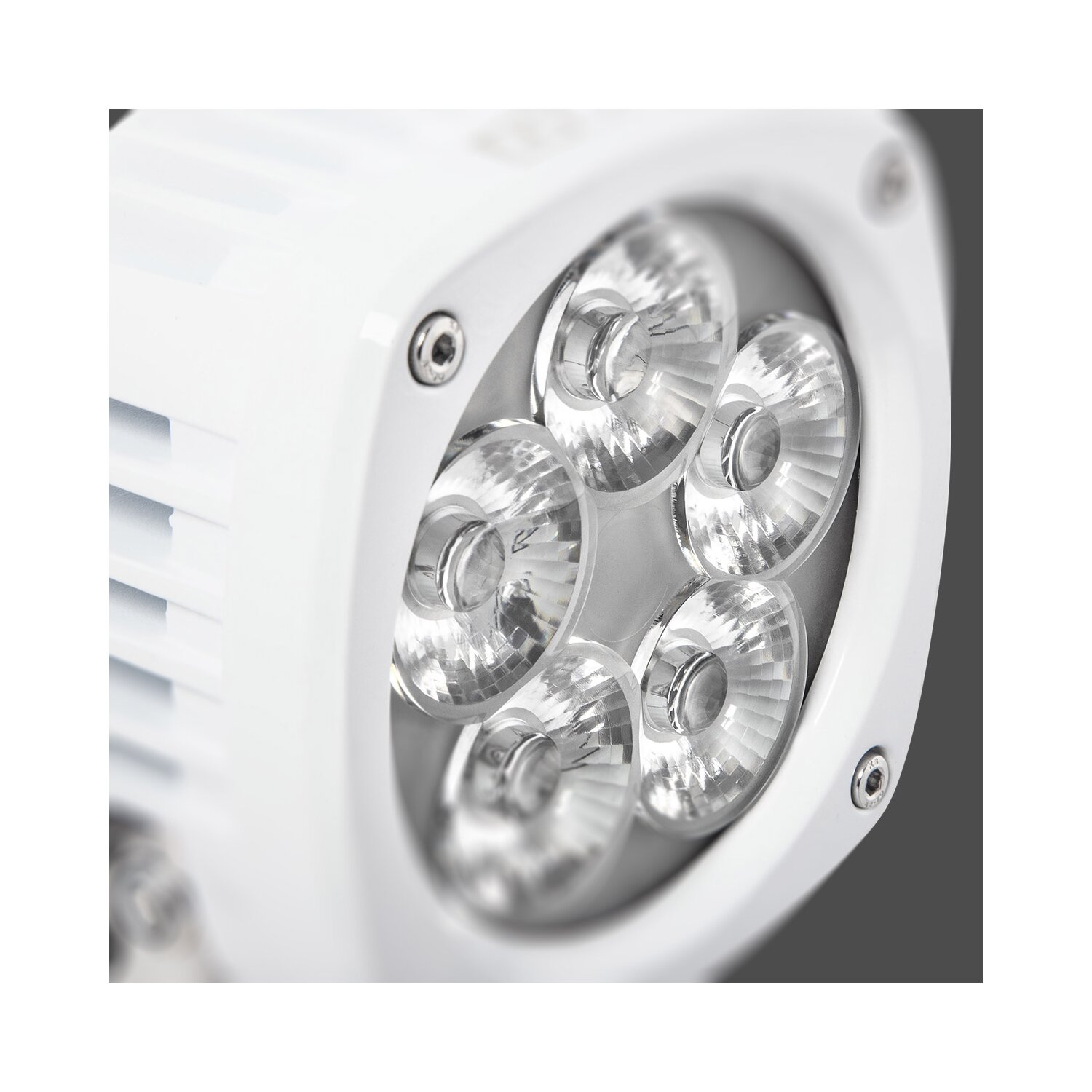

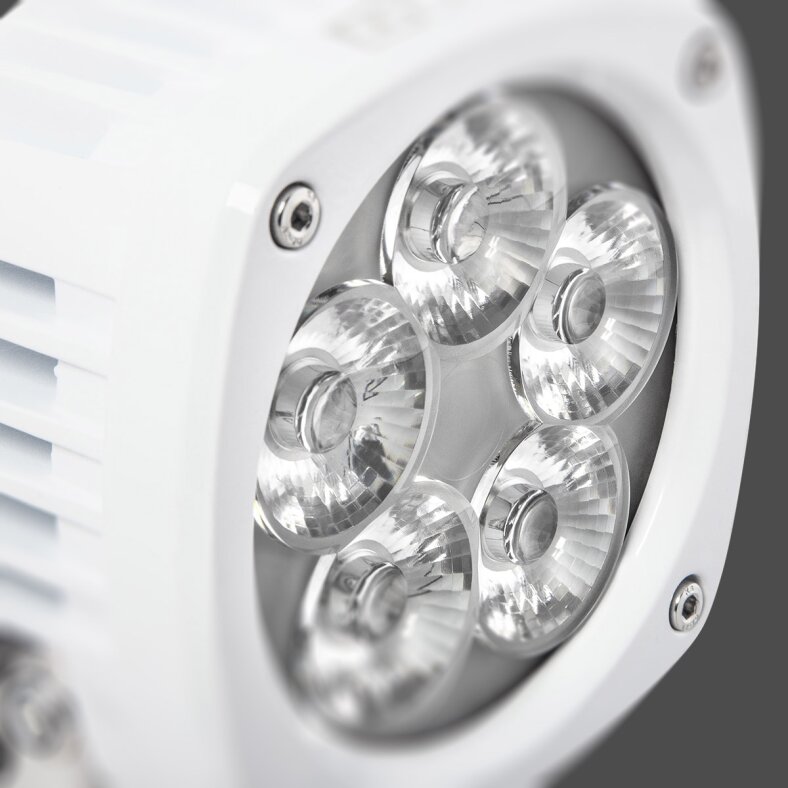

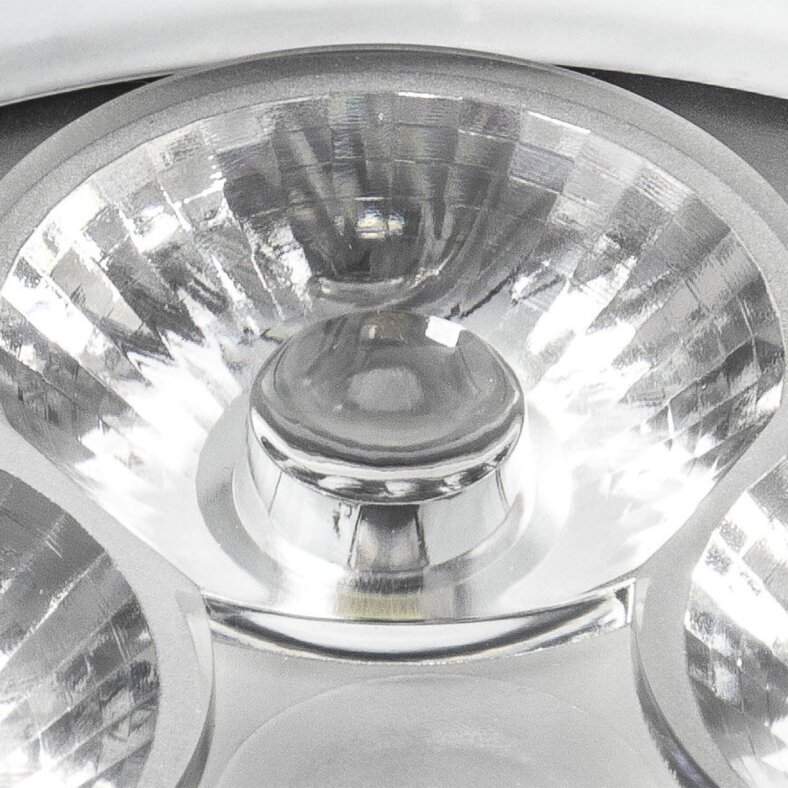

leds: 5pcs cree 10w xm-l2 high power led chips

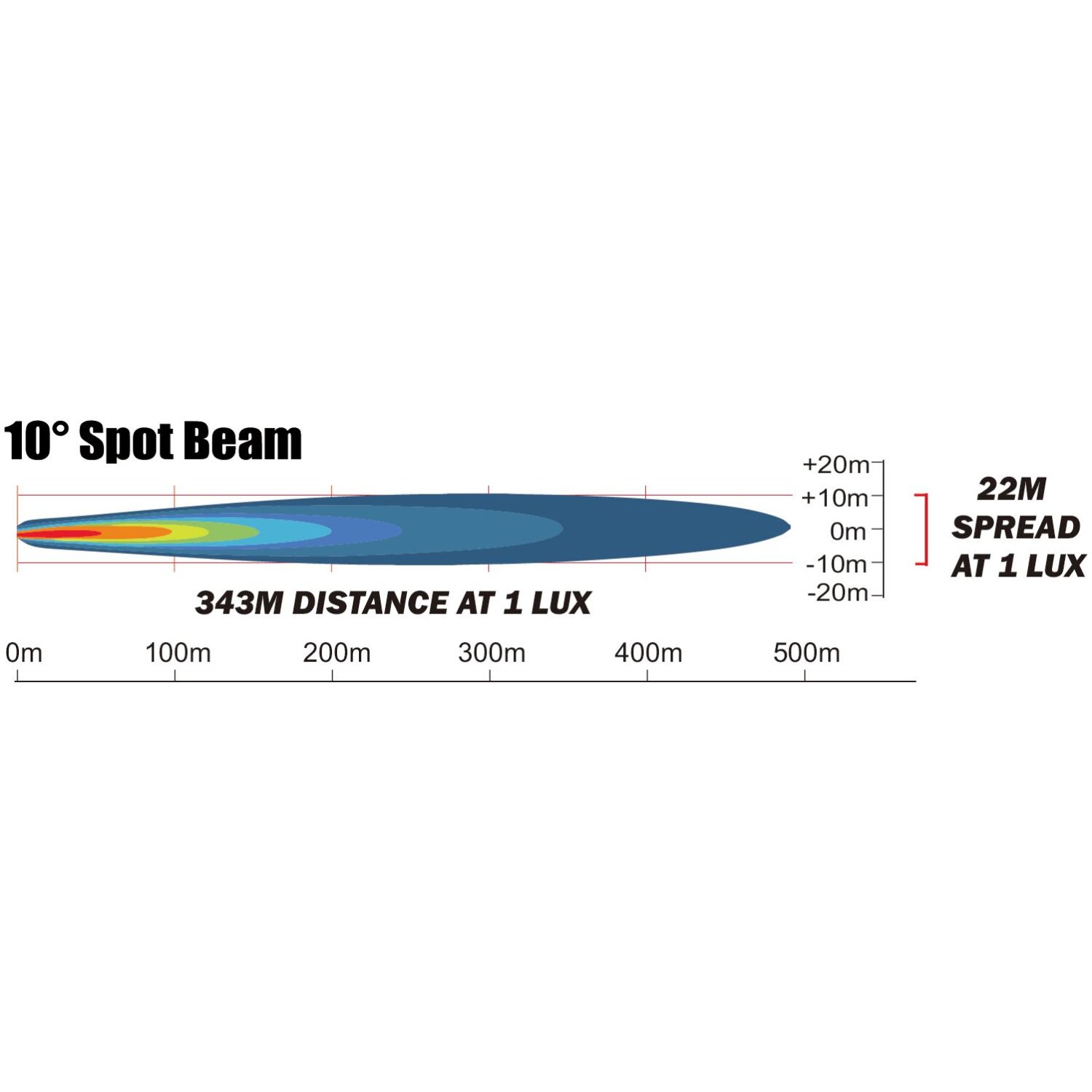

Light beam: 10° spot light
Theoretical lumens: 6900 lm
Effective lumens: 6500 lm
Circuitry: Super-Drive for lowest energy loss at maximum light output

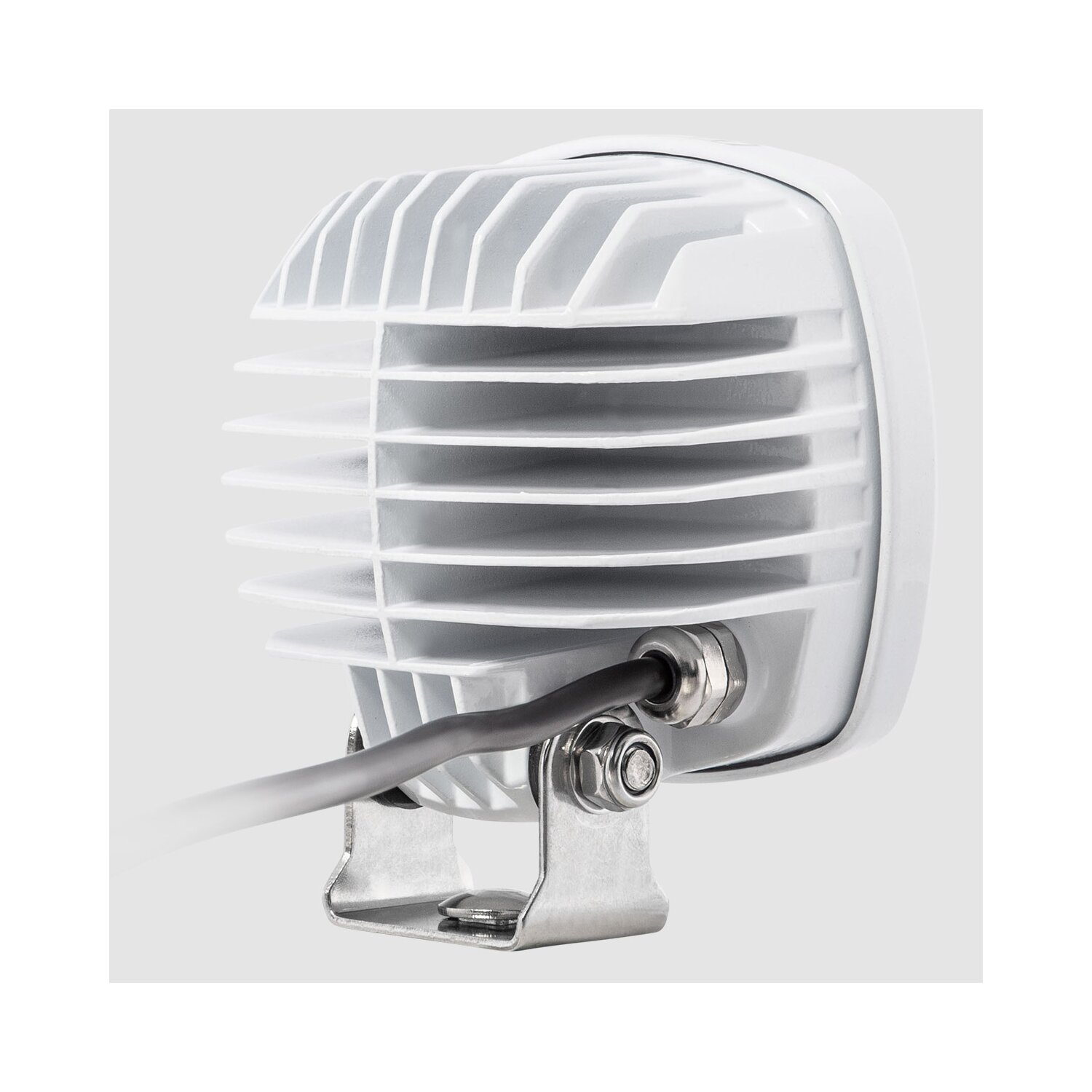

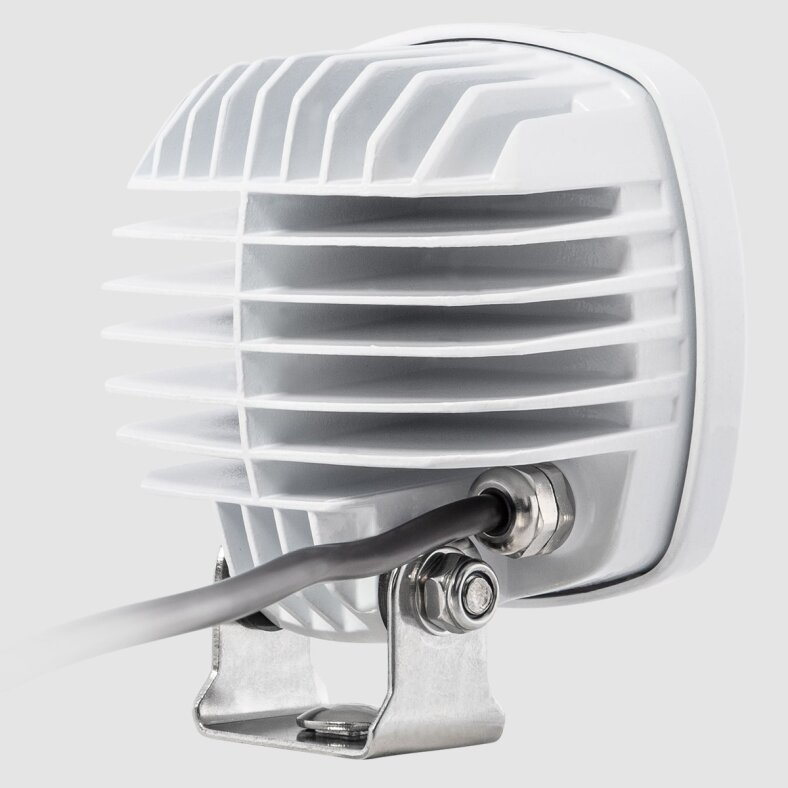

Housing: Die-cast aluminum
Coating: Anti-corrosion coating

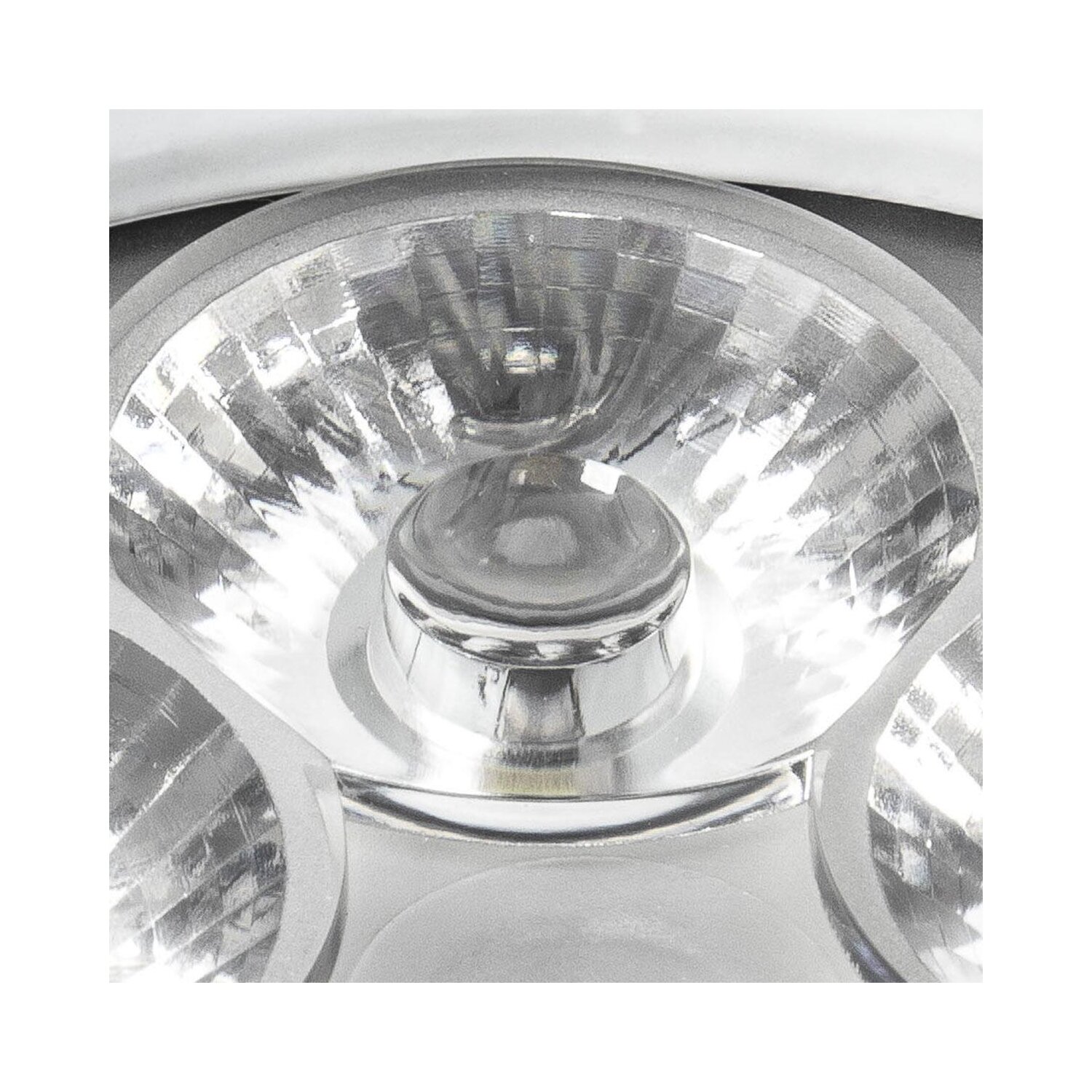

Lens: Clear optical and shatterproof Bayer PC lens
Operating temperature: -40°C - +95°C
Protection class: ip 68 waterproof, dustproof, shock resistant
Color: white
Dimensions: 109mm x 76mm x 135mm
Homologation: ece r10 (Electrically protected against radio frequency/EM interference)
Scope of delivery:
- 1x led headlight white 50w* incl. german plug

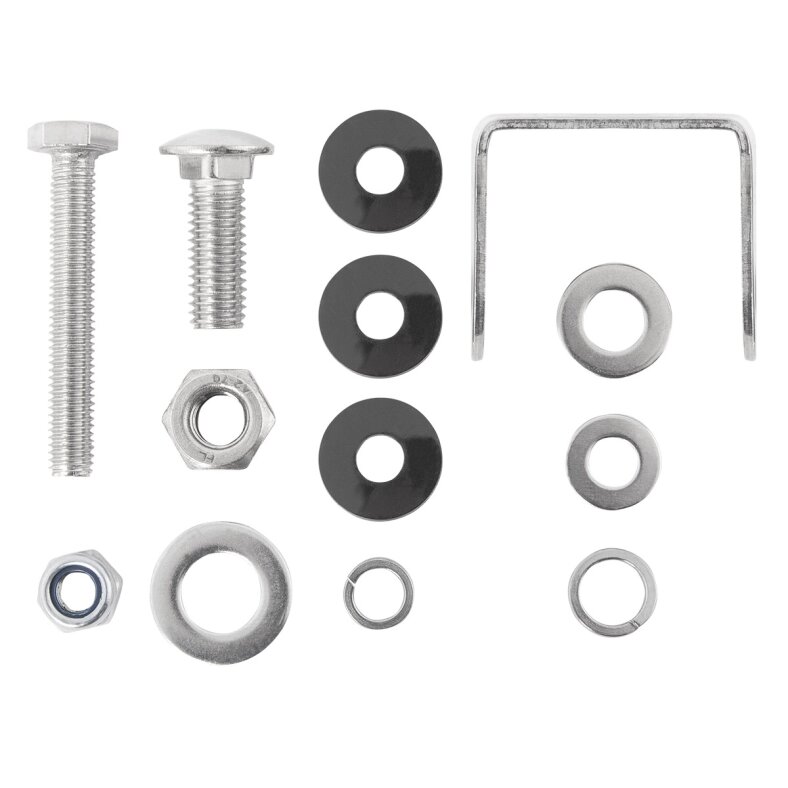

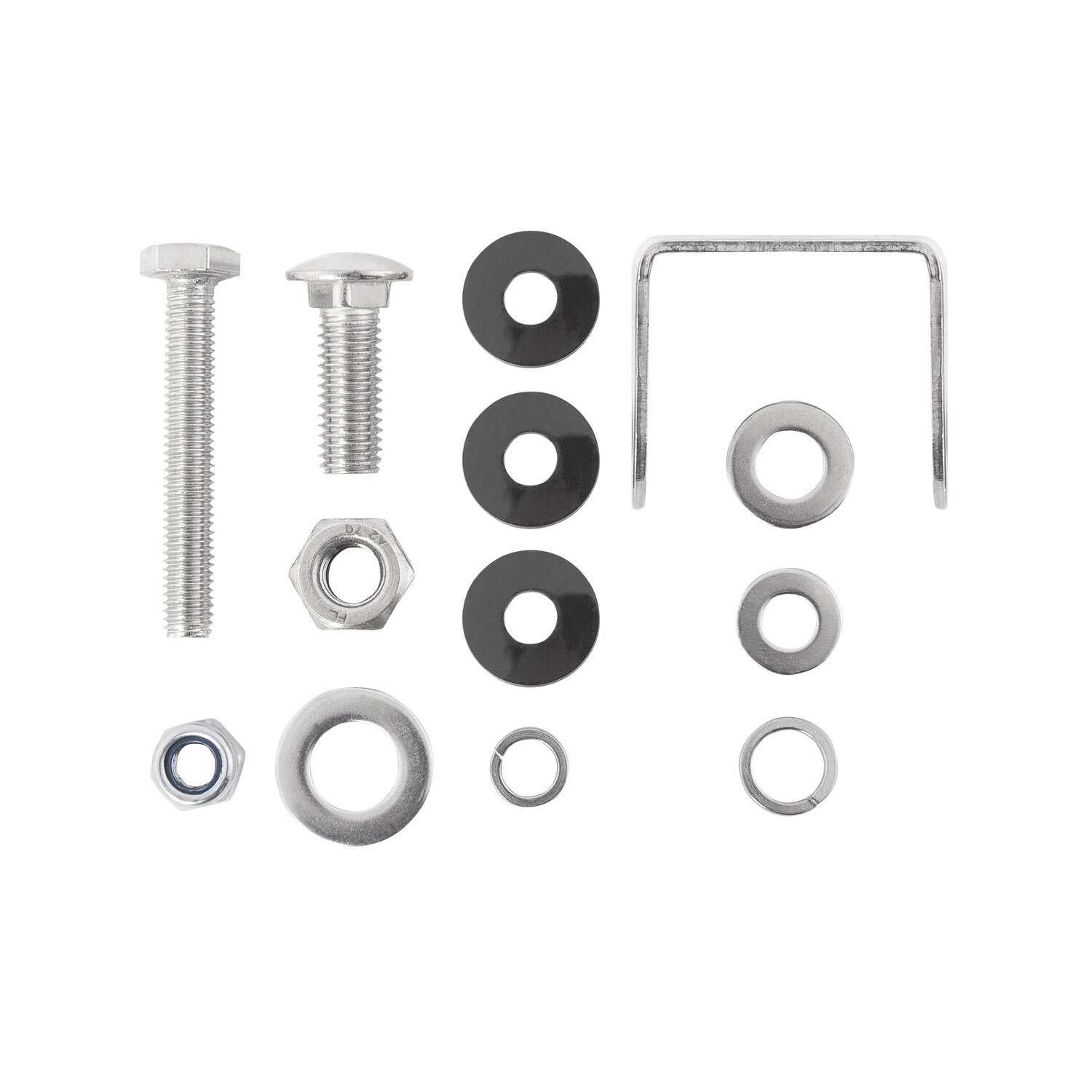

- 1x mounting bracket: stainless steel SUS304
- 1x mounting screws a2 70
- 1x connection cable with Deutsch plug
Legal notice for the use of worklights:
We bring light into the dark! In order to prevent misunderstandings in connection with worklights / auxiliary lights, the following information is provided here:
The use of worklights is regulated in §52 paragraph 7 stvzo "Additional headlights and lights":
"Multi-track vehicles may be equipped with one or more lights to illuminate work equipment and work sites (work lights). Work lights may not be used while the vehicle is in motion. On vehicles used for the construction, maintenance or cleaning of roads or facilities in the road area or for refuse collection, work lights may also be switched on while driving, notwithstanding sentence 2, if driving is part of the work process. Work lights may only be switched on if they do not dazzle other road users."
Therefore, note the following:
- Worklights may only be operated off public roads and not within the scope of the StVZO!
- Ensure proper installation and labeling:
- Worklights must not be coupled with actuating devices for limiting/dipped and /or main beam lights
- A separate switch (ideally covered) is always required
- The installation of an associated indicator light is recommended
- Mark in the vehicle in a suitable place near the switch of the worklights: "Use of worklights while driving not permitted!"
