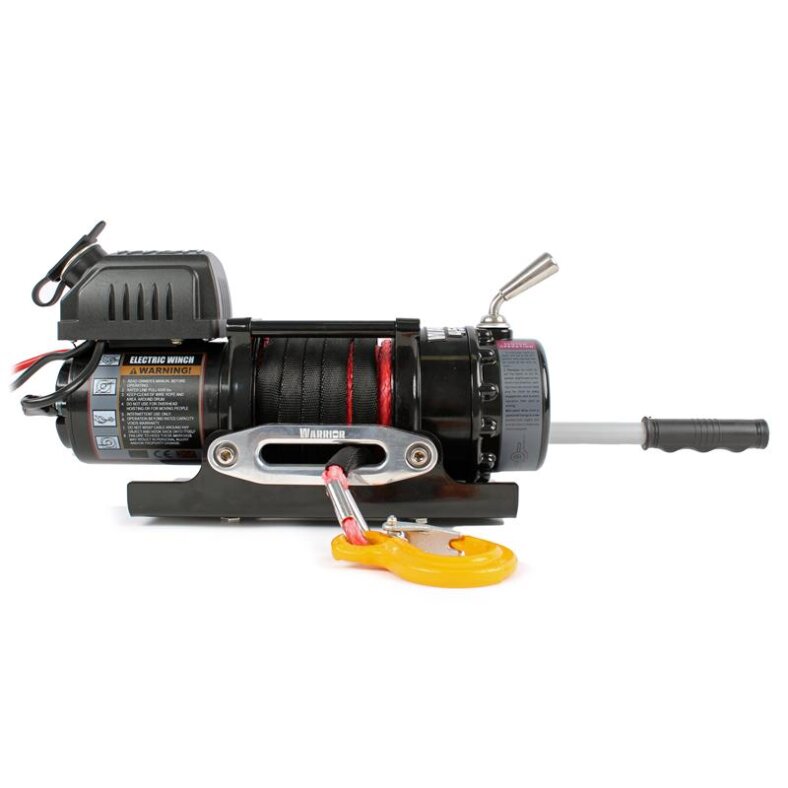

Single arm trailer hitch set incl. electric winch
warrior ninja 4500 2t 12V plastic rope
The top selling quad/aTV winch in the Warrior Range. The high quality 3-stage planetary gearbox makes this winch one of the quietest and smoothest running winches on the entire winch market. The smooth running performance and full load holding brake make the 4500 ninja the perfect solution for highly demanding applications.
Standard features:
- Pulling force: 4,500lb (2,041kg)
- Rope: 14.5m length Ø6mm armortek plastic rope with g80 3/8 clevis hook
- Engine: Input power: 2,4 kw / output power: 1,0 kw
- enables electric pulling in and out of the rope
- Gearbox: 3-stage metal drive
- with overrunning clutch: allows the manual extraction of the rope
- Gear ratio: 172:1
- brake: automatic mechanical brake
- Protection class: IP66
Scope of delivery:
- Cable remote control: included (3m cable length)
- Rope window: aluminum rope window
- mounting screws: included (for standard mounting)
- battery cable: Length 1.5 m (must be extended depending on application), cable cross-section: 10 mm²
- operating instructions
- Mounting plate: inclusive
- Quick release fastener
Further information:
- dimensions (l x w x h): 360mm x 126mm x 165mm
- Hole pattern/drilling pattern: 129mm x 96mm
- Weight: 13kg
Delivery is in 2 packages.
Assembly required.
Train speeds and power consumption:
| Rope layer |
|
Tractive force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
4500 / 2041 |
|
|
|
2 |
|
3642 / 1652 |
|
|
|
3
4 |
|
3060 / 1388
2638 / 1196 |
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| Traction |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
12 V |
| |
|
|
|
|
|
| 0 |
|
11,6 |
3,6 |
|
20 |
| 1500 / 680 |
|
9,2 |
2,8 |
|
70 |
| 2500 / 1134 |
|
7,8 |
2,4 |
|
100 |
3500 / 1587
4500 / 2041 |
|
6,6
4,9 |
2,0
1,5 |
|
140
200 |
IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
