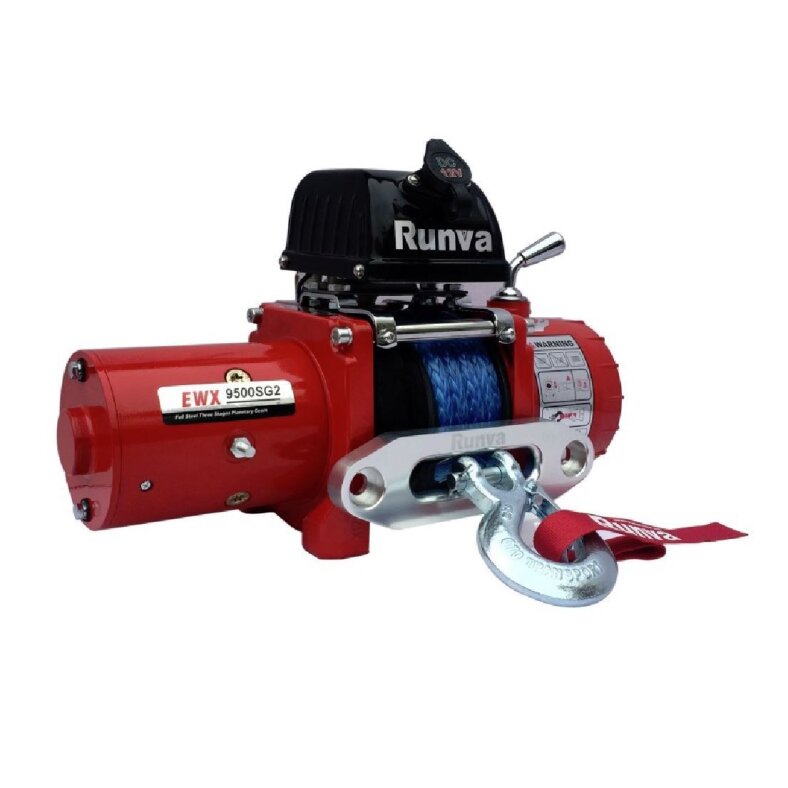

runva "RU-SD950024-SY" 24v Short Drum with radio remote control + plastic rope
The Short Drum version runva SD950024 is specially designed for mobile applications. Reduced overall weight and high pulling power make this winch the perfect helper for boat launching. Familiar quality at an excellent price-performance ratio.
With a total weight of only 29.5 kg and an overall width of only 437 mm, this boat winch is the perfect product for limited space and weight on the trailer tow bar.
The powerful 6.1 hp high output in-line motor delivers up to 8.6t pulling force (with pulley). The 14 meter long plastic rope can be pulled out electrically or by hand using the activated freewheel. Additional advantage with the plastic rope is that you can work without gloves. Due to the ip67 standard, the winch offers protection against temporary submersion up to a maximum water depth of 1 meter for a maximum of 30 minutes and can thus also be optimally used as a boat winch.
Specifications:
-
Pulling force4309 kg
-
Engine:
- 24v: input: 6.5kW / 8.1 ps; power: 2.8 kW / 3.8 ps
-
Reduction ratio: 230:1
-
Rope (diam. × L): Ø9.2 mm × 14.0
-
Drum size (diam. × L): Ø63mm×120mm
-
IP protection class: 67
-
Mounting bolt pattern: 151mm×114.3mm 4-M10
-

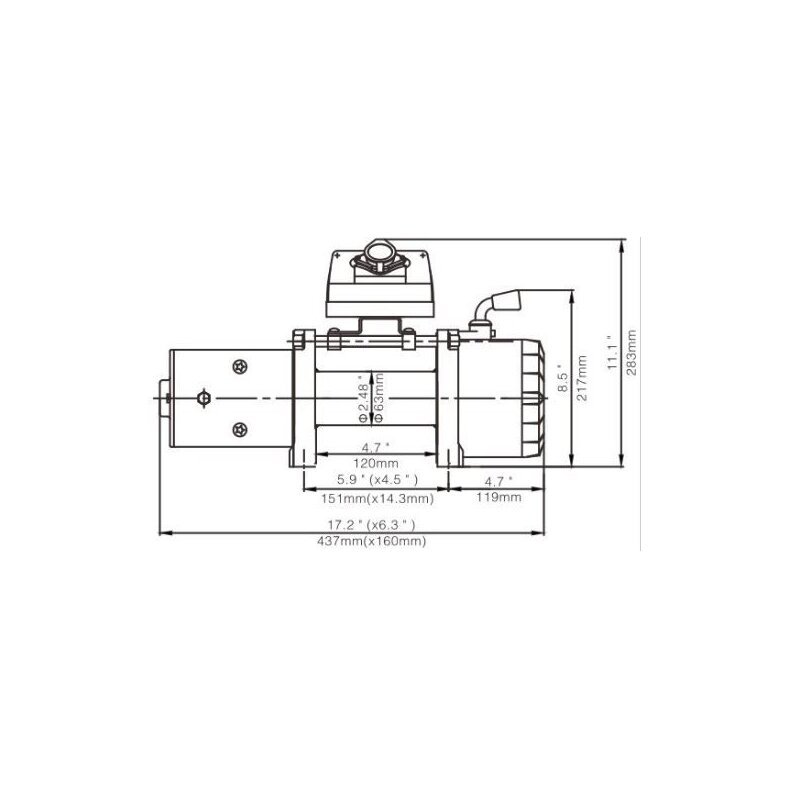

Overall dimensions(L×W×H): 437 mm × 160 mm × 283 mm
-
Net weight (kg): 29,5
Special Features:
- Stainless steel bolts, rolling windows, etc
- With additional sealed and extra heavy relay
Accessories:
-
Cable remote control: included (3m cable length)
-
Radio remote control: included 2x radio remote control
-
Rope window: aluminum rope window with engraved runva logo
-
Mounting screws: included (for standard mounting)
- ! Rope window is not directly mounted on winch. Please order optional mounting plate!
- Operating instructions
Pulling force, pulling speed, amperes, volts (first rope layer):
| Pulling force |
Pulling speed m/min |
Amps |
| lbs / kg |
|
24v DC |
|
24v DC |
| 0 |
|
6.8 |
|
70 |
| 3000 / 1361 |
|
5.0 |
|
140 |
| 6000 / 2722 |
|
3.9 |
|
210 |
| 9500 / 4309 |
|
2.9 |
|
270 |
Rope layer, tractive force, total rope on drum (m):
| Rope layer |
Tractive force (kgs) |
Total rope on drum (m) |
| 1 |
4309 |
3.0 |
| 2 |
3495 |
7.5 |
| 3 |
2940 |
13.0 |
| 4 |
2537 |
14.0 |
