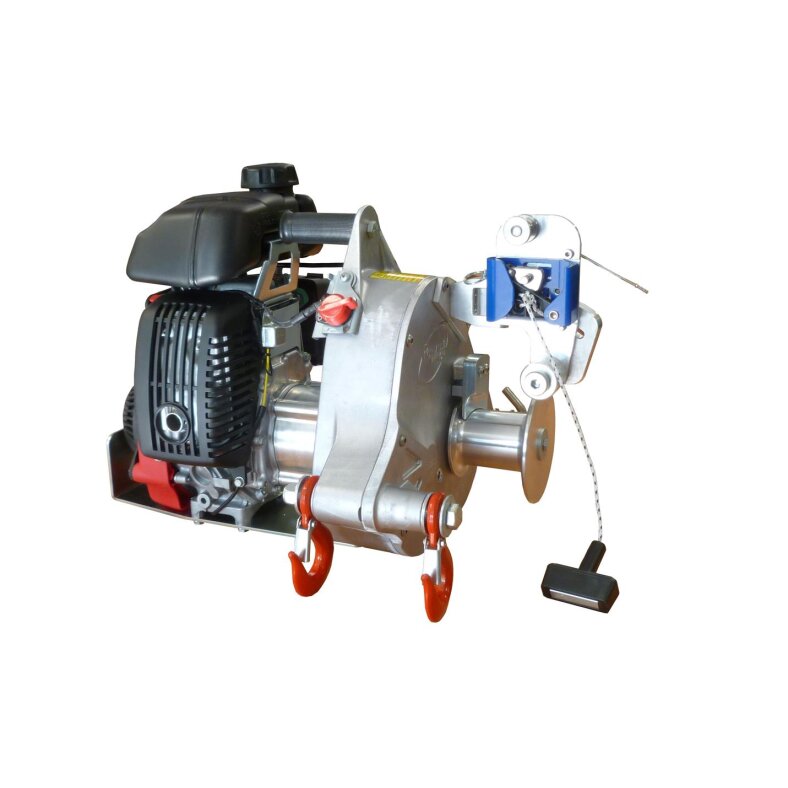

Pulling/lifting winch with gasoline drive. Max. Pulling power 775 kg. Max. Lifting power 250 kg
The ideal device for lifting loads!
The PCH1000 winch has been specifically designed for lifting applications and for uses such as the assembly of telecommunication structures or the installation of various equipment. It can lift loads of 250 kg with a single hoisting rope. A rope pulley system doubles the capacity to 500 kg.
Its integrated rope gripping system (brake) keeps the load in position, ensuring safe working.
This system is used for lifting and lowering loads. A wide range of accessories is available to simplify the installation process and anchoring of the winch to various anchor points (e.g. to a vehicle, post, mast or other).
PERFORMANCE
Maximum pulling force with drum installed (metric) : 775 kg
Maximum pulling force with optional drum (metric) : 540 kg
Rated lifting capacity with drum installed (metric) : 250 kg
Rated lifting capacity with optional drum (metric) : 175 kg
WINDLASS DRUMS
Installed : 57 mm
Optional : 85 mm
SPEED
57 mm drum : 12 m/min
85 mm drum : 18 m/min
ROPE
Minimum diameter (metric) : 12 mm
Maximum diameter (metric) : 13 mm
Recommended diameter (metric) : 12 mm
DRIVE SYSTEM
Engine : Honda gxh-50 cc four stroke
Gearbox : Alloy aluminum gearbox. Heat-treated 3-stage spur gear. Shafts are mounted in ball bearings. Oil bath lubrication.
Reduction ratio : 110:1
Brake : Clutch bearing for anti-lock protection
Clutch : Centrifugal
Drum rotates when engine is idling : No
Duty cycle : Continuous
WEIGHT and DIMENSIONS
Weight (metric) : 19 kg
Length (metric) : 50.5 cm
Width (metric) : 37.1 cm
Height (metric) : 36.1 cm
ANCHORING
Included : Polyester belt 60 mm x 2 m (PCA-1260)
