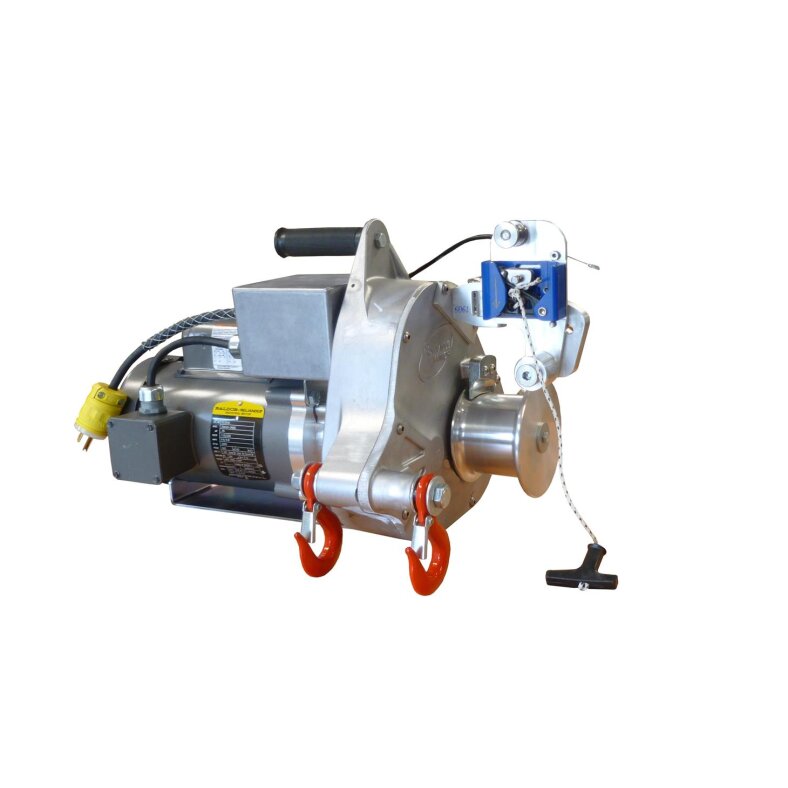

ac Electric pull/lift winch. Max. Pulling power 820kg. Max. Lifting capacity 250 kg.
This electric winch is ideal for indoor work, e.g. pulling electric cables through cable ducts or lifting equipment.
It can lift loads of 250 kg with a single hoist rope. A pulley system doubles the power to 500 kg.
For lifting applications, this winch is equipped with a rope restraint system that holds a load in place for safe operation.
The electric motor is activated by simply pulling on the rope. As soon as the operator stops pulling, the drum stops rotating to prevent rope damage. For operator safety, the electric winch is equipped with a rope gripping system that prevents the rope from accidentally slipping.
The pct1800 is recommended for applications where the use of gasoline is not possible, and it is also an interesting alternative when noise regulations must be respected.
PERFORMANCE
Maximum tractive force with drum installed (metric) : 820 kg
Maximum tractive force with optional drum (metric) : 1000 kg
Rated lifting capacity with drum installed (metric) : 250 kg
Rated lifting capacity with optional drum (metric) : 250 kg
WINDLASS DRUMS
Installed : 85 mm
Optional : 57 mm
SPEED
57 mm drum : 4.8 m/min
85 mm drum : 7,2 m/min
ROPE
Minimum diameter (metric) : 12 mm
Maximum diameter (metric) : 13 mm
Recommended diameter (metric) : 12 mm
DRIVE SYSTEM
Motor : Electric ac tefc 230 Vac - 1 ph - 3/4 hp - 50 Hz
Gearbox : Alloy aluminum gearbox. Heat treated 3 stage spur gear. Shafts are supported in ball bearings. Oil bath lubrication.
Reduction ratio : 110:1
Brake : Clutch bearing for anti-lock protection
Clutch : n/a - direct drive
Drum rotates when engine is idling : no
Duty cycle : 25% (15 min./h to prevent overheating)
WEIGHT and DIMENSIONS
Weight (metric) : 27 kg
Length (metric) : 55.6 cm
Width (metric) : 36.6 cm
Height (metric) : 36.6 cm
ANCHORING
Included : Polyester belt 60 mm x 2 m (PCA-1260)
