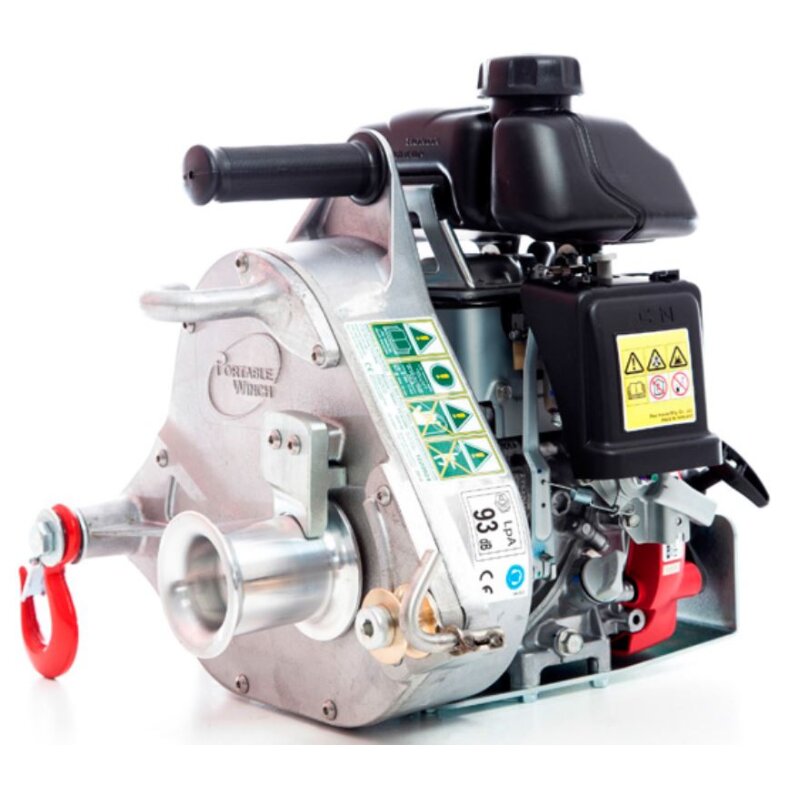

Portable Winch capstan winch is the perfect helper for pulling heavy loads!
Powered by the powerful honda four-stroke gxh-50 cc engine, this winch is the ideal companion for work around forestry, hunting and industry. With a weight of just 16 kg, the winch is extremely light and mobile. Nevertheless, this mobile powerhouse has a pulling force of 1,000 Kg.
This winch has two speed options thanks to the interchangeable windlass drums.
With the standard installed drum with a diameter of 57mm (function power), you can achieve a maximum pulling speed of 12 meters per minute.
Optionally, with the alternative drum* in the SPEED function, you can achieve a pulling speed of up to 18 meters per minute.
The pcw5000 mobile capstan winch can be used with any length of double-braided polyester rope with a 12 mm diameter, as well as with any type of Portable Winch equipment and accessories.
This winch will give you many years of faithful service.
*85mm diameter drum is sold separately (PCA-1100)
| POWER |
Maximum tractive force with drum installed (metric) : 1000 kg
Maximum tractive force with optional drum (metric) : 700 kg |
| WINDLASS DRUMS |
Installed : 57 mm
Optional : 85 mm |
| SPEED |
57 mm drum : 12 m/min
85 mm drum : 18 m/min |
ROPE
|
Minimum diameter (metric) : 10 mm
Maximum diameter (metric) : 16 mm
Recommended diameter (metric) : 12 mm |
| DRIVE SYSTEM |
Engine : Honda gxh-50 cc four stroke
Gearbox : Alloy aluminum gearbox.
Heat-treated 3-stage spur gear.
Shafts are mounted in ball bearings. Oil bath lubrication.
Reduction ratio : 110:1
Brake : Clutch bearing for anti-lock protection
Clutch : n/a - direct drive
Drum rotates when engine is idling : Yes
Duty cycle : Continuous |
| WEIGHT and DIMENSIONS |
Weight (metric) : 16 kg
Length (metric) : 36.2 cm
Width (metric) : 37.1 cm
Height (metric) : 36.1 cm |
| ANCHORING |
Included : Polyester strap 60 mm x 2 m (PCA-1260) |
| WARRANTY |
Private use : 5 years
Commercial use : 1 year
Motorization : Honda international warranty |
| OTHER |
Certification : CE |
| ADDITIONAL INFORMATION |
Register your winch on www.portablewinch.com
and get a free ADDITIONAL 1-YEAR WARRANTY! |
