Splitting device eder ehg1

SKU: EHG-001
HAN: EHG1
Category: Spaltgerät

1.899,99 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 4 - 6 Workdays (DE - int. shipments may differ)

piece

This bundle is now in the shopping cart.

Discount with Bundle:

This bundle promotion cannot be combined with other coupon promotions.

Splitting device eder ehg1

Hydraulic power unit eder eha150

Your Savings: 180,00 €

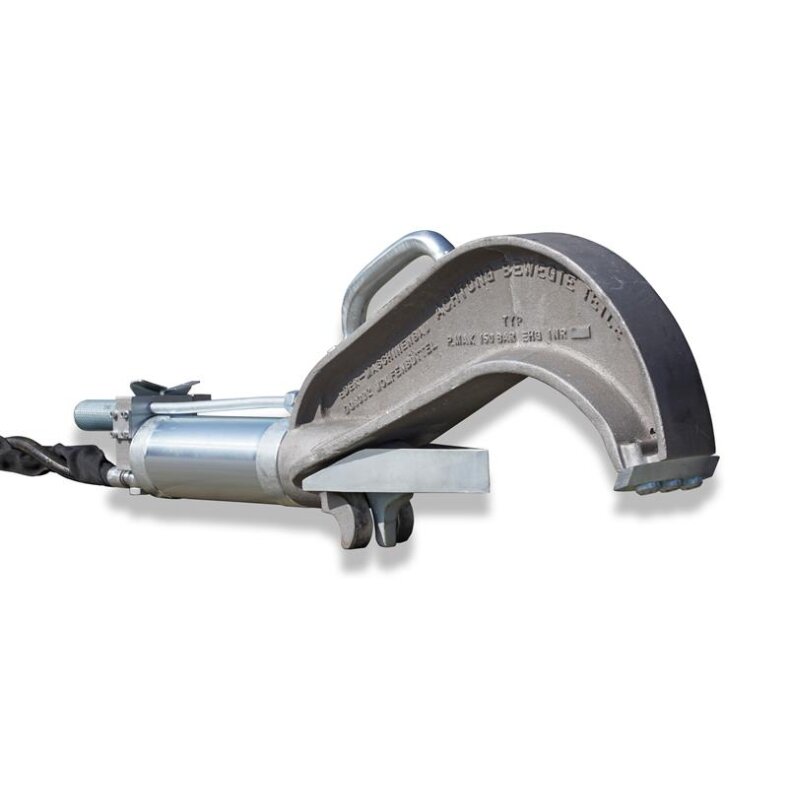

EDER splitting device

The splitting device is suitable for splitting logs regardless of length and diameter.
By using the splitting device, the splitting of long or fibrous tree trunks can be made much easier and faster.
The logs to be split are split one or more times in their respective position on the ground, as required.
The device is also suitable for splitting tree tops.

Technical specifications:

Weight without hoses 16 kg
Length 983 mm
Width 120 mm
Height 296 mm
Wedge thickness 120 mm
Pressure force on the wedge 75.000 n
Required oil pressure 150 bar
Required minimum oil flow > 10 l/min

The EDER hydraulic power unit is optimized for use with our hydraulic splitting equipment.
It provides oil pressure and oil flow in such a way that work with these tools can be carried out quickly and powerfully.
The power unit is driven by an economical 4-stroke gasoline engine with an output of 4.8 kW (6.5 ps).
The aggregate is built into a carrying frame and can be easily transported by one or two persons with its low weight of approx. 30 kg
be easily transported by one or two persons. But other applications are also conceivable
where an oil flow of up to 12 liters per minute and an oil pressure of 150 bar (max. 210 bar) are required.

IMPORTANT: The hydraulic unit is not included in the scope of delivery of the splitting device!
