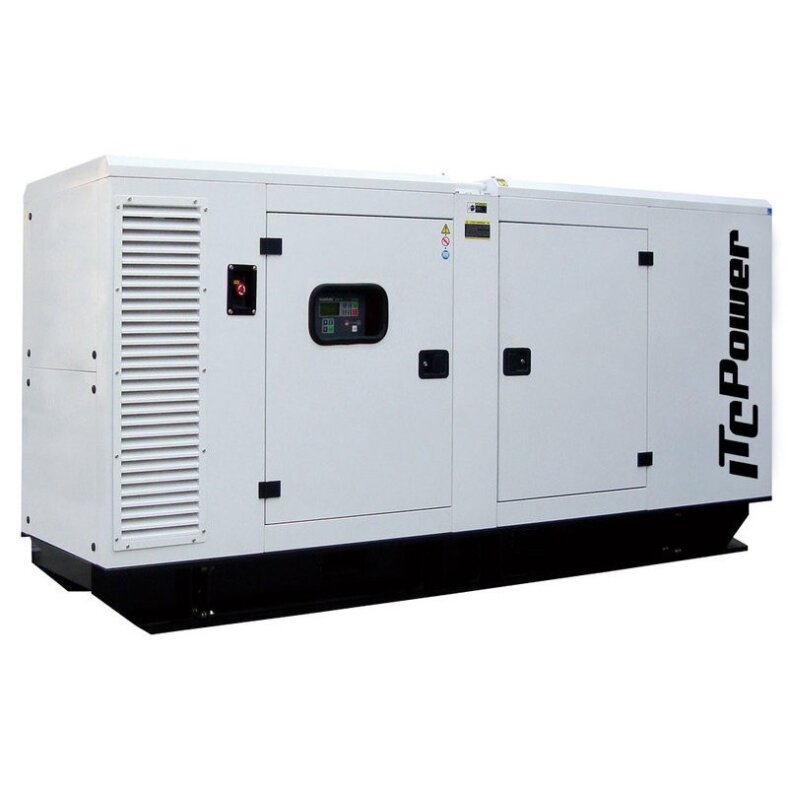

itc power industrial generator genset dg34kse 34 kva diesel water cooled
The industrial genset is commissioned and tested by a technician in the workshop before delivery. It is filled with the required operating materials, adjusted and tested under load, as well as undergoing a full system test.
This ensures that all you have to do on receipt of the goods is fill the diesel tank and the unit will start up in the "turn of a key". This elaborate initial commissioning has an equivalent value of 499€ gross and is already included in our price!
TECHNICAL DATA:
AGGREGAT:
- Maximum power: 34 kvA
- Nominal power: 31 kvA
- Rated current: 49 A
- Frequency: 50 Hz
- Voltage: 400 v and 230 v
GENERATOR:
- Manufacturer: itc Power
- Voltage regulation: AvR analog +/- 1,5%
MOTOR:
- Manufacturer: hy4102 (Hyundai)
- Speed:: 1500 rpm.
- Mechanical speed control
- Displacement: 3.800cc
- 4 cylinders
- Oil capacity: 7,5 l
- Water cooled
- Coolant: 10 liters
- Fuel: Diesel
- Fuel consumption: 9 l/h at 100% load / 4.5 l/h at 50% load
AGGREGATED:
- Tank capacity: 93 l
- Working time with one tank filling at 100% load: 10h
- Weight without fuel: 1,000 kg
- Dimensions in mm: 2200 x 950 x 1250
- Noise level: 92 dB
- Sound pressure: (7 m): 66 dB
STANDARD EQUIPMENT
- Multifunctional display MRS10
- ATS pre-equipment
- MRS function
- Voltage display
- Current display
- Display kvA
- Generator protection indicator
- Hour counter
- Battery charge indicator
- Working hours of the engine
General:
- Emergency stop button (one outside the group and one on the control panel)
- Manual or potential free contact starter (ats, programmer etc.)
- Galvanized and painted steel housing for protection against rust
- Wide doors for easy maintenance and access to the interior of the machine
- Fuel filling from the outside
- AvR regulator
Display:
- Cooling temperature
- Oil pressure
- Engine speed (u / min)
- Fuel level
- Battery voltage
- Battery voltage
Fused against:
- Low oil pressure
- High cooling temperature
- Low and high battery voltage
- Battery charging generator defective
- Low fuel level
Please note that this is a large and heavy unit that can be delivered by truck without a loading ramp.
You are therefore responsible for unloading on site and will need a wheel loader, forklift or similar for this purpose.
